Item No :

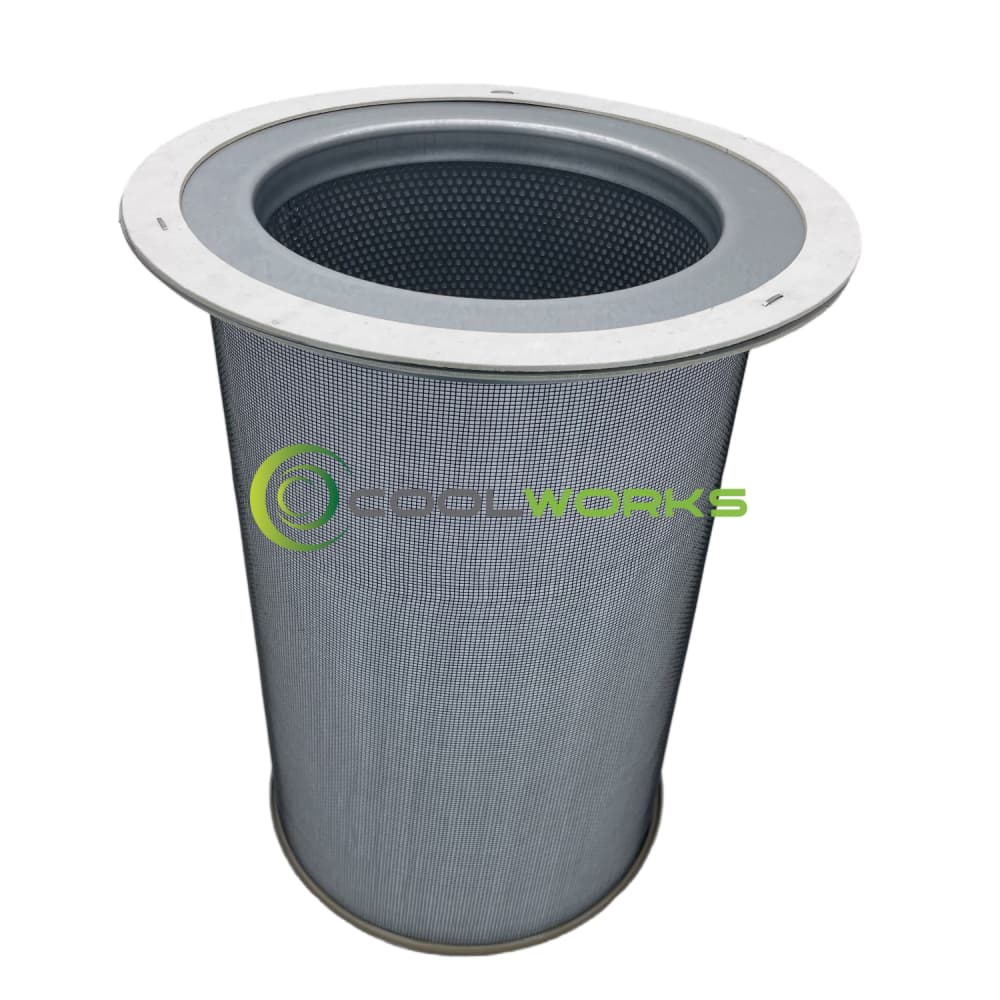

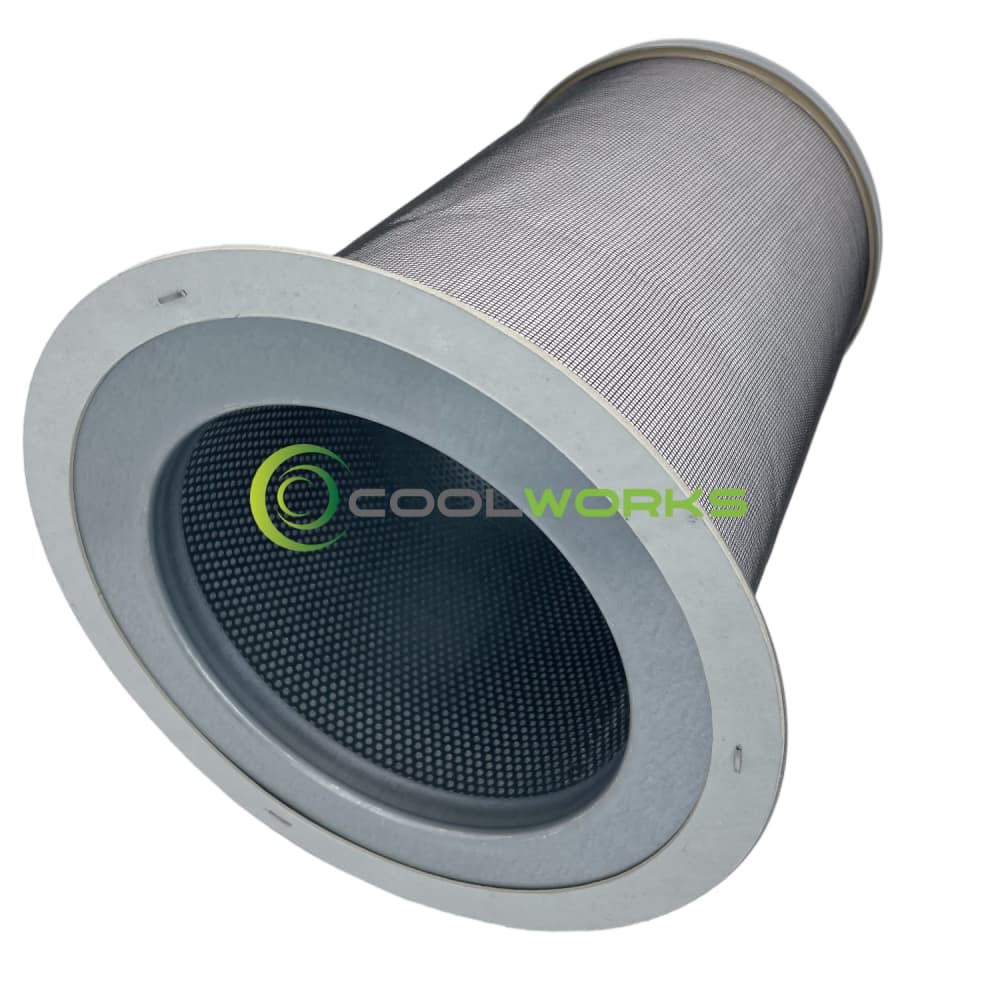

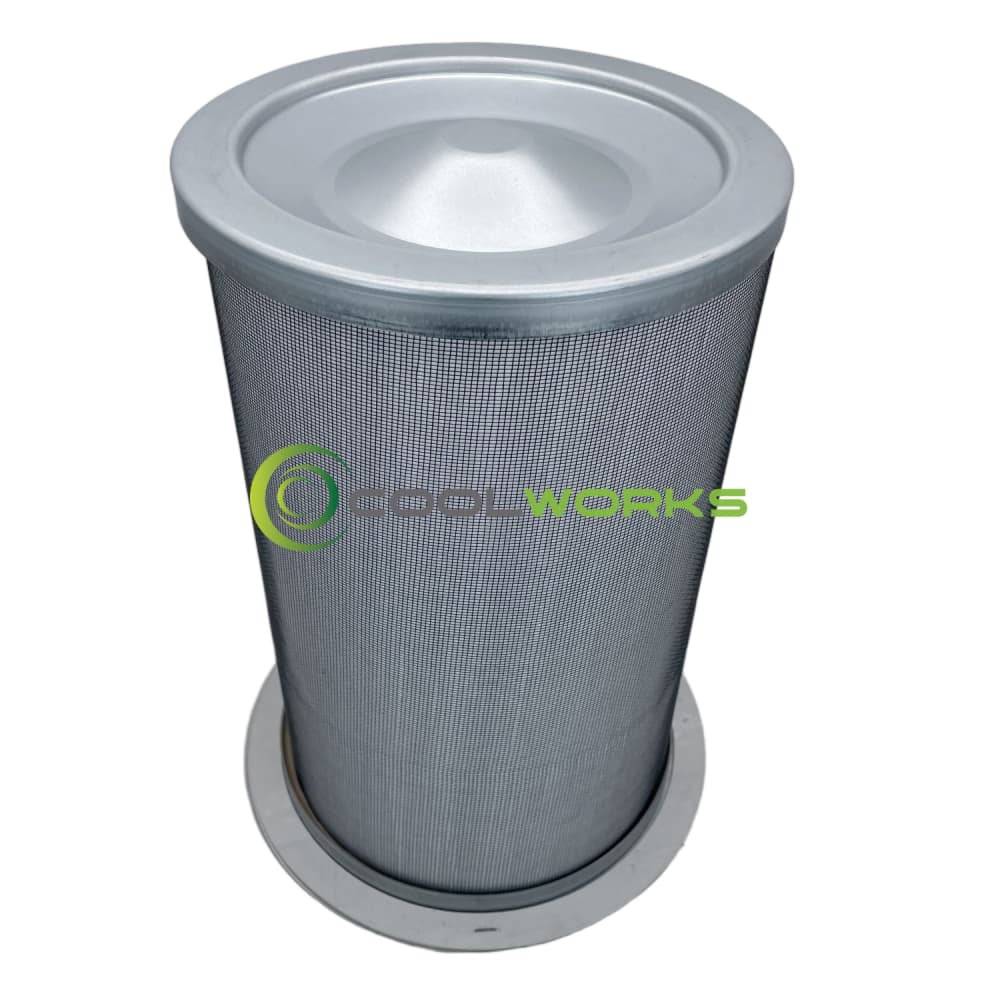

Coolworks Oil Separator 1000169447 1000169430Order(MOQ) :
1Payment :
Please consultProduct Origin :
ChinaColor :
CustomizableShipping Port :
CNYTN;CNSHK;CHNNS;CNHPU;SHANGHAI;QINGDAO,etcLead Time :
5-7 working daysWeight :
Please consult
 |
 |
| Oil separator standard specification | ||||
| Air flow(m³/min) | OD d1(mm) | Flange d2(mm) | ID d3(mm) | Height h(mm) |
| 35 | 135 | 170 | 75 | 160 |
| 4.5 | 135 | 170 | 75 | 200 |
| 6.8 | 135 | 170 | 75 | 305 |
| 5.0 | 170 | 200 | 109 | 180 |
| 6.5 | 170 | 200 | 109 | 230 |
| 9.0 | 170 | 200 | 109 | 305 |
| 12 | 170 | 200 | 109 | 400 |
| 9.0 | 220 | 273 | 157 | 230 |
| 12 | 220 | 272 | 157 | 305 |
| 16 | 220 | 288 | 157 | 400 |
| 25 | 220 | 272 | 157 | 612 |
| 15 | 275 | 328 | 209 | 305 |
| 20 | 275 | 328 | 209 | 400 |
| 25.5 | 275 | 328 | 209 | 500 |
| 16 | 300 | 355 | 220 | 305 |
| 22 | 300 | 355 | 220 | 400 |
| 28 | 300 | 355 | 220 | 500 |
| 32 | 300 | 355 | 220 | 540 |
| 34 | 300 | 355 | 220 | 600 |
| 40 | 300 | 355 | 220 | 700 |
| 40 | 350 | 430 | 265 | 550 |
| 39 | 400 | 434 | 314 | 520 |
| 43 | 400 | 439 | 314 | 600 |
| 46.5 | 400 | 434 | 314 | 620 |
The 1000169447 and 1000169430 oil separators have demonstrated reliable performance across multiple industrial applications, with users reporting extended service intervals and consistent filtration results.
These units are manufactured using established techniques refined through ongoing client feedback and technical analysis.
Our production team maintains detailed records of application cases, enabling data-driven configuration recommendations for new projects.
The technical support team provides guidance based on documented performance metrics from similar operating conditions, helping optimize specifications for your specific compressor models.
Contact us with your specifications to develop your ideal filtration solution.
Hot selling high quality oil separator CF23017220-4 25300065-533 25300065-033. Coolworks filters can customize air compressor fittings to your needs. Trust in Coolworks reliable products to keep your air compressor running smoothly.
