Item No :

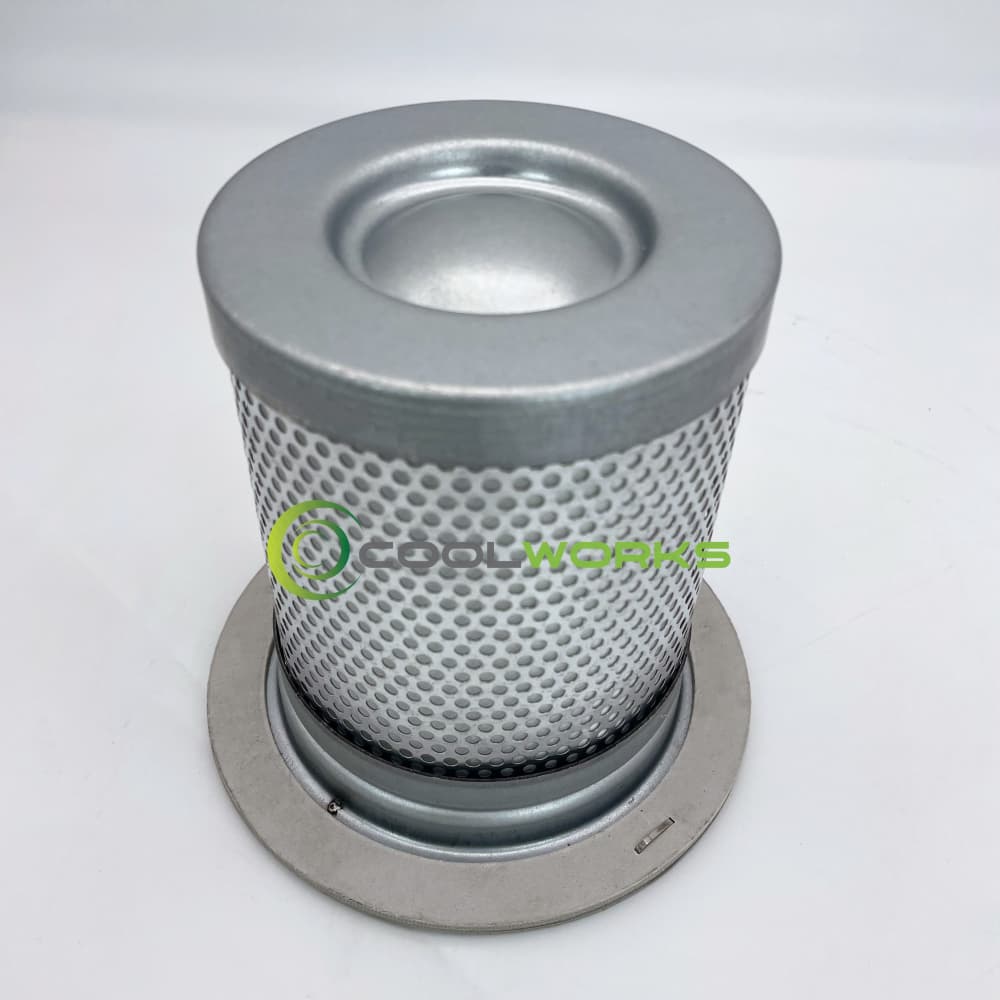

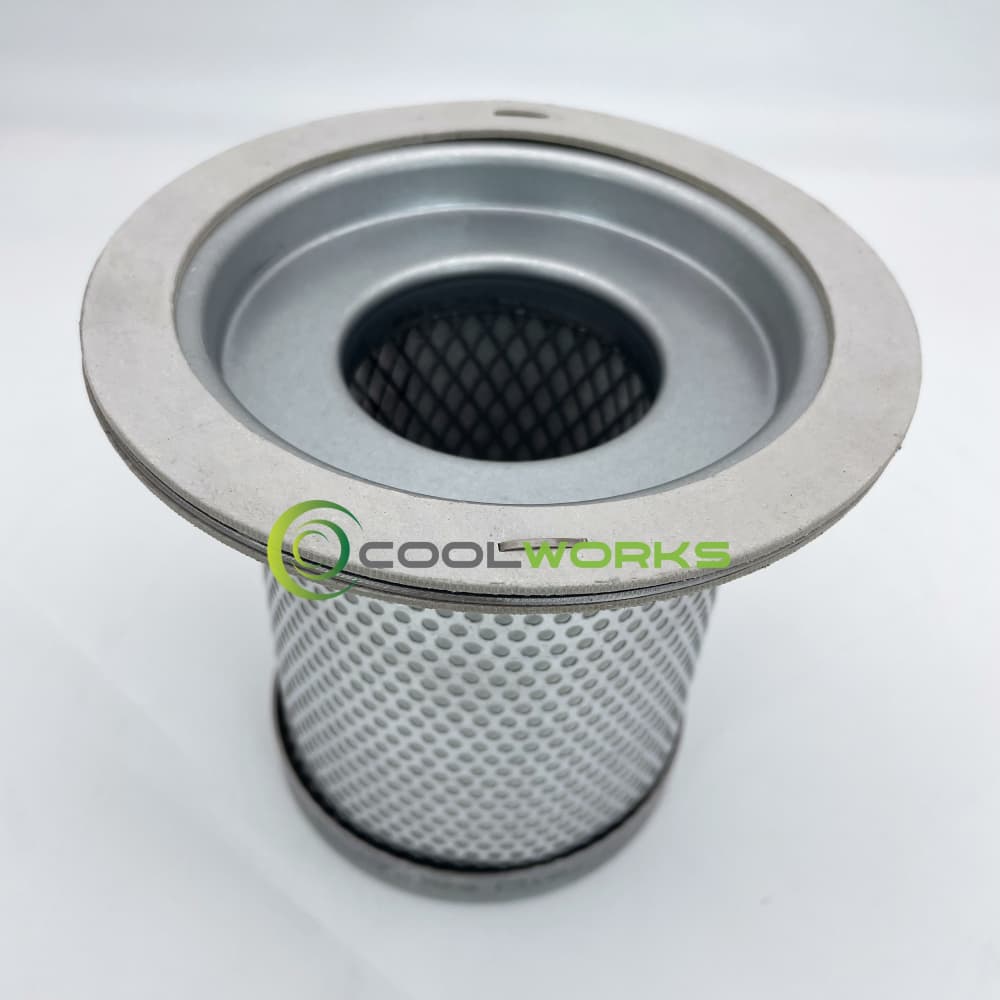

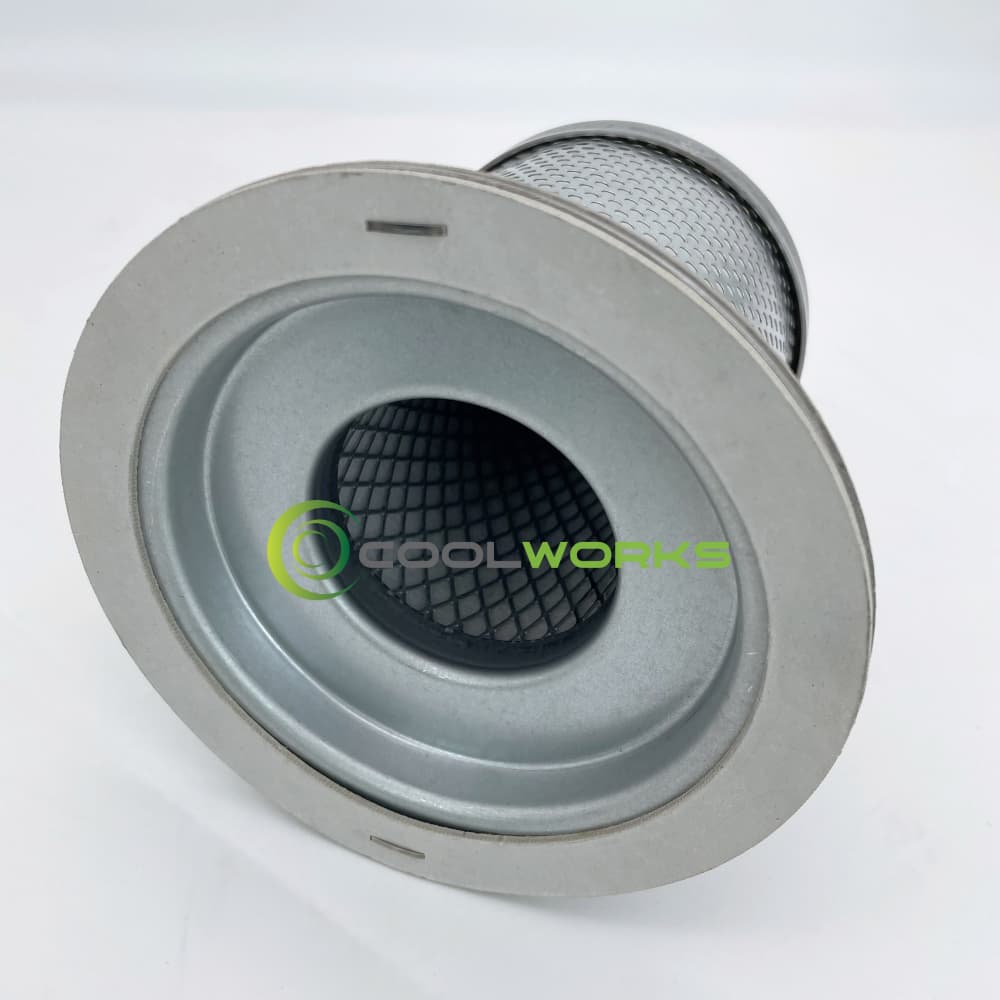

Coolworks Oil Separator CF14511135NOrder(MOQ) :
1Payment :
Please consultProduct Origin :
ChinaColor :
CustomizableShipping Port :
CNYTN;CNSHK;CHNNS;CNHPU;SHANGHAI;QINGDAO,etcLead Time :
5-7 working daysWeight :
Please consult![]() |
![]() |
Oil separator standard specification | ||||
Air flow(m³/min) | OD d1(mm) | Flange d2(mm) | ID d3(mm) | Height h(mm) |
35 | 135 | 170 | 75 | 160 |
4.5 | 135 | 170 | 75 | 200 |
6.8 | 135 | 170 | 75 | 305 |
5.0 | 170 | 200 | 109 | 180 |
6.5 | 170 | 200 | 109 | 230 |
9.0 | 170 | 200 | 109 | 305 |
12 | 170 | 200 | 109 | 400 |
9.0 | 220 | 273 | 157 | 230 |
12 | 220 | 272 | 157 | 305 |
16 | 220 | 288 | 157 | 400 |
25 | 220 | 272 | 157 | 612 |
15 | 275 | 328 | 209 | 305 |
20 | 275 | 328 | 209 | 400 |
25.5 | 275 | 328 | 209 | 500 |
16 | 300 | 355 | 220 | 305 |
22 | 300 | 355 | 220 | 400 |
28 | 300 | 355 | 220 | 500 |
32 | 300 | 355 | 220 | 540 |
34 | 300 | 355 | 220 | 600 |
40 | 300 | 355 | 220 | 700 |
40 | 350 | 430 | 265 | 550 |
39 | 400 | 434 | 314 | 520 |
43 | 400 | 439 | 314 | 600 |
46.5 | 400 | 434 | 314 | 620 |
Coolworks,
Focus on providing you with cost-effective air compressor filter.
.
However, impurities in the air compressor system also need to be effectively filtered.
To ensure the stability of the system and the quality of the product.
In this crucial part of the process,
Coolworks filter element is a good guardian to ensure the normal use of air compressors.
